◆ China Major Products Introduce
- 1. TYPE:

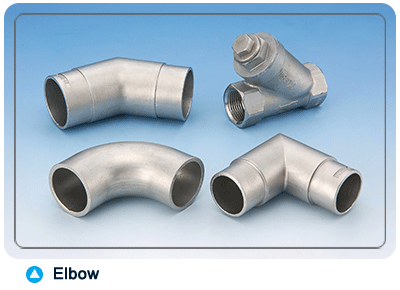

- 1. ELBOW, CROSS, STREET ELBOW, TEE, BOSS, COUPLING, HALF COUPLING, CAP, PLUG, BUSHING, UNION, SWAGE NIPPLE, BULL PLUG, REDUCER INSERT, PIPE NIPPLE ETC.
- 2. SOCKET-WELD OR THREADED (NPT OR PT TYPE.)
- 2. SIZE:
- NPS 1/4"- 12"(6mm - 300mm)
- 3. RATING:
- THREADED WOG :1000,1500,2000 AND 3000 LBS / SOCKET-WELDING WOG 1000,2000,3000 LBS.
- 4. SPECIFICATION:
- 1. DIM. SPEC: ASME B 16.11-1996 (RIVISION OF ANSI B16.11-1991),MSS-SP-79\ 83\ 95\97 AND CHUS SPEC..
- 2. MATERIAL SPEC.:
- ASTM A276-316 / ASTM A351-CF8M / EN10213-1.4408 / JIS G5121-SCS14A
- ASTM A276-304 / ASTM A351-CF8 / EN10213-1.4308 / JIS G5121-SCS13A
- ASTM A276-304L / ASTM A351-CF3 / EN10213-1.4309 / JIS G5121-SCS19A
- ASTM A276-316L / ASTM A351-CF3M / EN10213-1.4409 / JIS G5121-SCS16A
- ASTM A216-WCB / EN10213-1.0619 / JIS G5151-SCPH2
- ASTM A351-CN7M / JIS G5121-SCS23
- JIS G4305-SUS301
- JIS G4305-SUS410
- JIS G4305-SUS430
- 3. RAW MATERIAL:SCRAP STAINLESS STEEL MATERIAL
- 5. MARKING:
- 1. CARBON AND ALLOY STEEL: MARKED BY STAMPING.
- 2. STAINLESS: MARKED BY ELECTRO-ETCHED OR JET PRINTED OR STAMPED.
- 3. 3/8" UNDER: BRAND ONLY.
- 4. 3/8"TO 12": MARKED BRAND (PRESSURE AND SIZE).
- 6. FINISH:
- GALVANIZED OR BLACK.(CARBON), PICKLED / POLISHING / PLAIN (STAINLESS).
- 7. PACKING:
- CARTON KEG ＆ WOODEN CASE.
